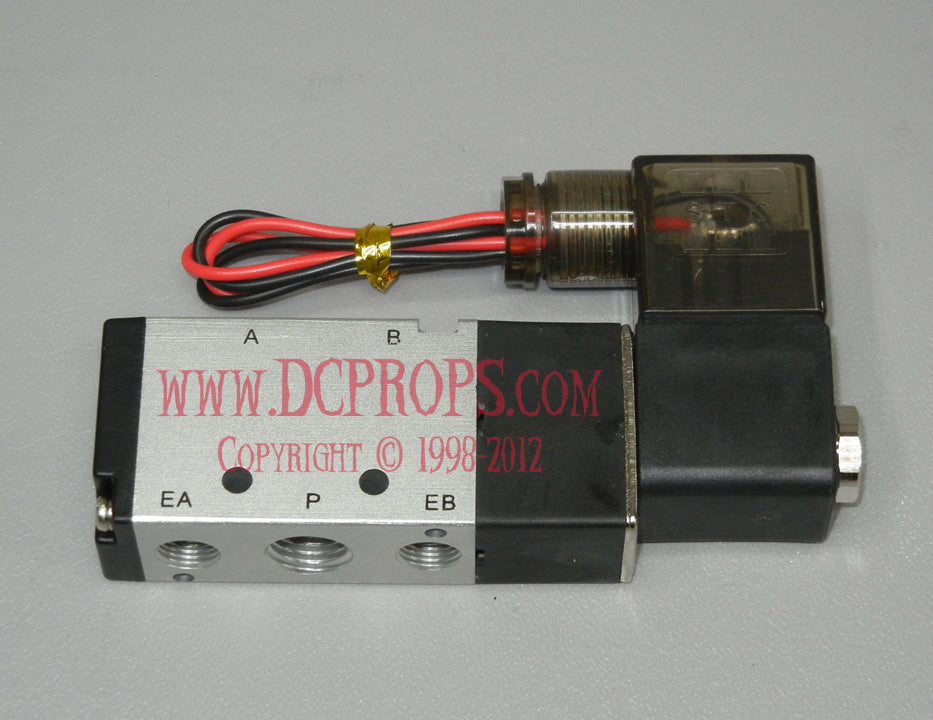

4 Way 2 Position Pneumatic Valve - Standard Duty

This is the industry standard 4-way, 2 position pneumatic solenoid valve for controlling small thru medium sized double acting air cylinders.   This is the valve we use on our torso erectors, animated skulls, light lifters, and all small movement animations.

High quality professional valve features 1/4″ npt ports on the "A", "B", and "Pressure" ports and 1/8"NPT Ports on both "A" & "B" exhaust ports.

Valve Specifications:

• Port & Mounting Body Ported, 4-Way, 2-Position, Spring Return
• Action & Motion Air Pilot, Spool Design, Response Time < 20ms
• Operating Pressure Operating Pressure: 21 to 115 PSI
• Operating Temperature 14 to 140°F (-10 to 60°C)
• Cv 0.67 0.89 1.68 1.68 2.79
• SCFM @ 100 PSI  53
• Manual Override: Detentable (depress & rotate)
• Electrical Connection: DIN (pictured here) with LED or Grommet
• Working Medium 40 micron filtered air or inert gas
• Coil Duty Cycle & Protection: 100% ED (Continuous Duty), IP65, Class F
• Coil Voltage Options 12VDC, 24VDC, 110/120 VAC (50/60Hz)
• Coil Power  3 / 4.8W
• Coil Locking Nut M8x0.75 Threads
• Wetted Surfaces: Anodized Aluminum, NBR (Buna N), Stainless Steel
